Product Details
Place of Origin: China
Brand Name: Haisic
Certification: CE,FCC,ROHS,MSDS,UN38.3
Model Number: HS-BG5000W
Payment & Shipping Terms
Minimum Order Quantity: 10pcs
Price: 855
Packaging Details: paper box+outer carton
Delivery Time: 35-45days
Payment Terms: L/C, D/A, T/T, Western Union, MoneyGram,
Supply Ability: 3000PCS/month
Product Name: |
Lifepo4 48V 200ah Solar Battery |
Type: |
48v 100ah Solar Energy Storage Battery |
Feature: |
5120wh Lithium Battery For Solar Energy Storage |
Function: |
48V 51.2V 100ah Home Energy Storage For Solar System |
Battery: |
A Grade 5120Wh Lithium Phasphate Battery |
Cycle Life: |
5000 Deep Cycle |
Product Name: |
Lifepo4 48V 200ah Solar Battery |
Type: |
48v 100ah Solar Energy Storage Battery |
Feature: |
5120wh Lithium Battery For Solar Energy Storage |
Function: |
48V 51.2V 100ah Home Energy Storage For Solar System |
Battery: |
A Grade 5120Wh Lithium Phasphate Battery |
Cycle Life: |
5000 Deep Cycle |
Product name:
48V 100Ah parrarel connection home solar wind energy storage system
Spec:
| HS-BG5000W | |
| Basic Parameter | |
| Rated Voltage(V) | 51.2 |
| Rated Capacity(Ah) | 100 |
| Rated Energy(Wh) | 5120 |
| Operation Parameter | |
| Voltage Range(V) | 44.8-56 |
| Charge Voltage Range(V) | 55.2-56 |
| Cut-off Voltage(V) | 44.8 |
| Recommend Charge Current(A) | 50 |
| Max Charge Current(A) | 100 |
| Max Discharge Current(A) | 100 |
| Physical Parameter | |
| Dimension:L*W*H(mm) | 420*160*580 |
| Weight(kg) | 49 |
| Communication Port | RS485,CAN |
| Display | LED+LCD |
| Terminal | Plug-in |
| Environment Parameter | |
| Humidity(%) | 5-95% RH |
| Charge Temperature Range(℃) | 0-45 |
| Discharge Temperature Range(℃) | -80 |
| Storage Temperature Range(℃) | -65 |
| Service Life | |
| Cycle Life | ＞6000 (0.5C@ 25℃,80% DOD) |
| Design Life (Year) | 15 |
| Certification | |
| Safety & Certification | CE,EMC,TUV(IEC62619),UL1973 |
| Transportation | UN38.3 |
Feature:

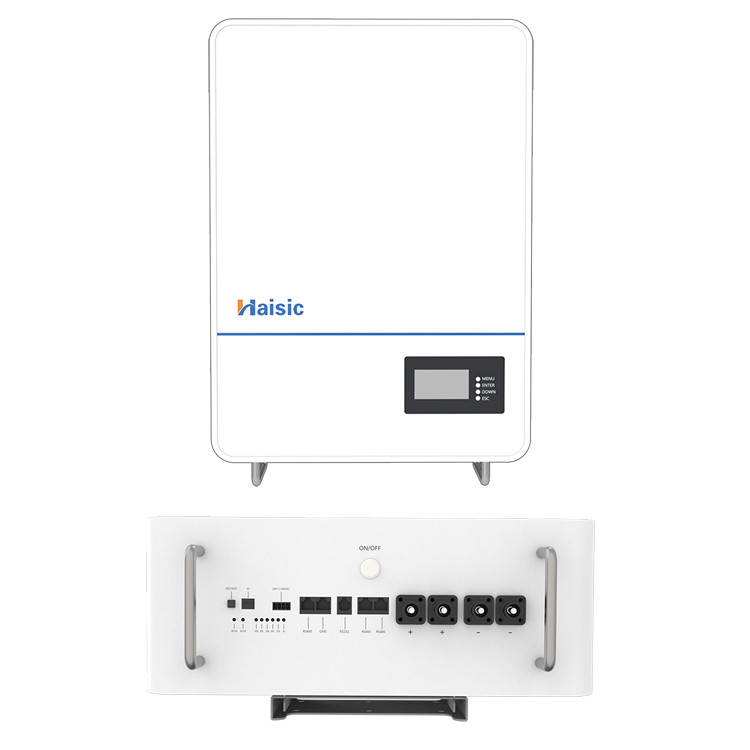

1. Wall-mounted metal housing design, MPPT technology for Smart Battery Charging, High Efficiency . support OEM/ODM service.
2.This is 48V/51.2V 100Ah Powerwall Battery, with Grade A quality LiFePO4 Battery. Safe – LFP Chemistry.
3. Quick and Easy Install. One battery can be equipped with one set of connection cables. If buy 4pcs, we can match with 4pcs Battery with 4 set cabels for parallel connections.
4.Suitable for Off Grid or On Grid. When grid-connected, or connected to a local micro-grid, our Solar storage battery can be connected in parallel. This allows your system to be modular and expandable as your energy storage needs change.
Images:
Shenzhe New Hong Energy Co.,Ltd(www.portable-powers.com),
Our factory to produce battery pack products in Dapeng,Shenzhen since 2011. R&D engineers: 30persons, provide one-stop service from ID design, structure design,molding, electrical design, packaging design&assembly and packaging.
