Product Details
Place of Origin: China
Brand Name: Haisic
Certification: CE,FCC,ROHS,MSDS,UN38.3
Model Number: HS-JT5000W
Payment & Shipping Terms
Minimum Order Quantity: 10PCS
Price: USD2268-USD8500
Packaging Details: paper box+outer carton
Delivery Time: 35-45days
Payment Terms: L/C, D/A, T/T, Western Union, MoneyGram,
Supply Ability: 2000PCS/month
Product Name: |
Stacked LPF Battery 48V-56V |
Battery Type: |
51.2V 100AH For One Module |
Function: |
Stacked Lifepo4 Battery Energy Storage System |
Feature: |
Stacked 7pcs LFP Battery Module Max |
Cycle Life: |
10 Years Life Cycle. |
Compatible Inverter: |
Growatt,Goodwe,Sol-Ark,SRNE,DEYE |
Product Name: |
Stacked LPF Battery 48V-56V |
Battery Type: |
51.2V 100AH For One Module |
Function: |
Stacked Lifepo4 Battery Energy Storage System |
Feature: |
Stacked 7pcs LFP Battery Module Max |
Cycle Life: |
10 Years Life Cycle. |
Compatible Inverter: |
Growatt,Goodwe,Sol-Ark,SRNE,DEYE |

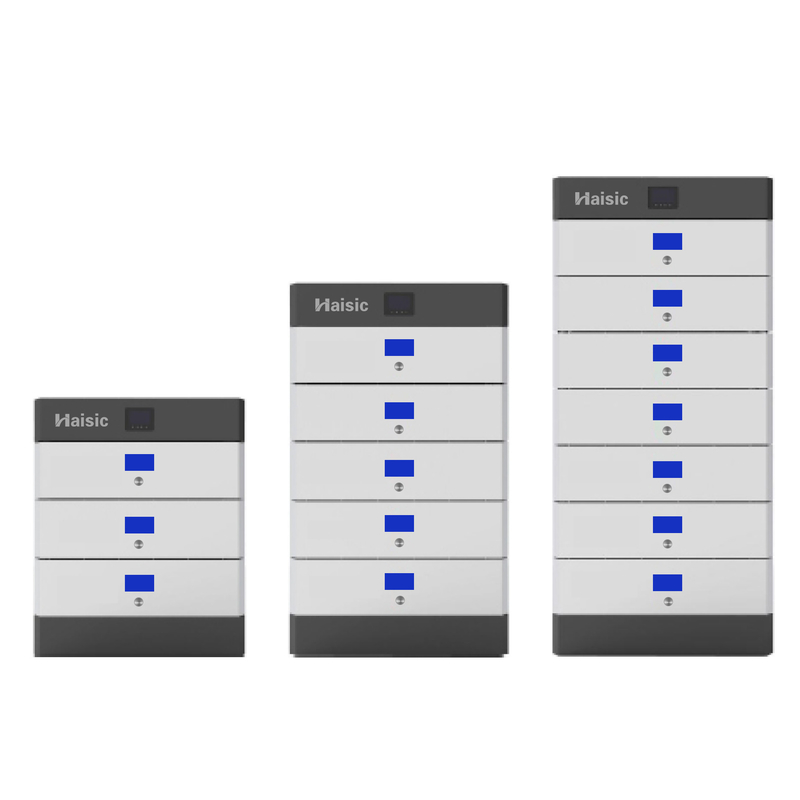

Latest 5Kwh To 20Kwh Stacked LiFePO4 Batteries For Home Solar Energy Storage System
Spec:
| Model No. | HS-JT5000W |
| Rated Voltage(V) | 51.2V |
| Rated Capacity(Ah) | 100Ah |
| Rated Energy(Wh) | 5120Wh |
| Module Number | 2-3-4-5-6-7 Parrarel connection |
| Voltage Range(V) | 44.8-56V |
| Rated Energy(Wh) | 10240WH-15360WH-20480WH-25600WH-30720WH-35840WH |
| Standard Discharge Current(A) | 200A-200A-200A-200A-200A-200A |
| Dimension:L*W*H(mm) | 670*430*H420-580-740-900-1060-1220mm |
| Weight(kg) | 110-160-210-260-310-360KG |
| Communication Port | RS485,CAN |
| Display | LED+LCD |
| Terminal | Plug-in |
| Compatible inverter | Growatt,Goodwe,Sol-Ark,SRNE,DEYE |
| IP Rate | IP55 |
| Charge Temperature Range(℃) | 0-45℃ |
| Discharge Temperature Range(℃) | -20~60℃ |
| Storage Temperature Range(℃) | -20~45℃ |
| Cycle Life | ＞6000 times(0.5C@ 25℃,80% DOD) |
| Design Life (Year) | 15years |
| Safety & Certification | CE,EMC,TUV(IEC62619) |
| Transportation | UN38.3,MSDS |
Feature:
1. LFP rechargeable battery.
2. Good extendibility, 5kWh each, easy extend to 10kWh-35KW .
3. Good compatibility, standard communication protocol, CAN and RS485, compatible with most popular hybrid and off-grid inverters in the market.
4. IP65 protection class, suit for outdoor and indoor installation.
5. Extremely long life cycle, more than 6000 times or 10 years.
6. High protection measures, built-in Aerosol active fire protection module, thermal runaway detection and active fire protection.
